This block is used to create floors and roofs. It rests either on reinforced concrete T beams or on ferrocement channels.
This product is manufactured in accordance with EN 15037-2:2009+A1:2011.
Delivery Mode:
Free Collection at Factory
Free Delivery for quantity more than 10000 And within 30km radius.
Free Collection at Factory

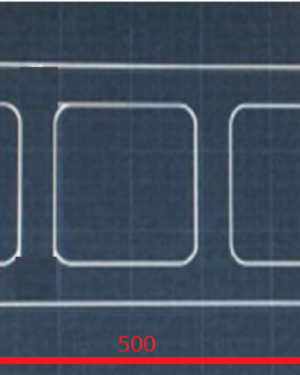

Free Delivery for quantity more than 10000 And within 30km radius. Hourdi Block 500X150X200mm(Hourdi-15 French)
Code: KHHF-502015-GY
Price of one Pallet of 60
560.00FCFA
| Dimensional tolerances | ||
|---|---|---|
| Length | 500mm | |
| Width | 150mm | |
| Height | 200mm | |
| Weight | 20Kg | |
| Tolerance | T1 | |
| Dry Density | 1980 kg/m3 | |
| Shape & Features | Standard finish | |
| Group according EN 1996-1-1 (EC6) | Group 1 (hollow) | |
| Number of holes | 3 | |
| Mean Unit Strength | ||
| Mean normalised strength | 16N/mm2 | |
| Direction of load | Longitudinal | |
| Unit category | Cat II | |
| Dimensional stability | <0.6mm/m | |
| Bond Strength | ||
| Shear bond | 0.15N/mm2 (tabulated value) | |
| Flexural bond | NPD | |
| Reaction to fire | ||
| Classification to EN 13501-1 | A1 | |
| Fire resistance (REI) | 60min. | |
| Water vapour diffusion coefficient | ||
| Water absorption | NPD | |
| Water vapour permeability | 5/15mm2 (tabulated value) | |
| Thermal conductivity (W/mK) | ||
| Thermal conductivity | 1W/(m.k) | |
| Sound | ||
| Airborne sound insulation | Group 1 (hollow) | |
| Durability | ||
| Durability | X0 | |
| Dangerous substances | ||
| NPD | ||
